ENGINE DRIVEN Slurry Pumps

Centrifugal chopper pumps to be driven by either tractor PTO, electric motor, or Diesel power pack. Featuring multi channel impellers, ENGINE DRIVE Slurry Pumpsand unique double chopping mechanism. Recommended for applications where high pressures and thorough chopping are required – particularly suited to long range applications.

The Blueline PT range of centrifugal pumps features a multi-channel impeller and an unique aggressive double chopping mechanism to give reliable pumping, and ease of use. The PTF /PTD range includes models for pedestal mounting, SAE flange mounting and with reduction gearbox for reduced engine speed and greater efficiency.

Flange mounted pumps allow simple installation onto engine with an SAE standard flywheel and bell housing for perfect alignment and simple assembly.This range of pumps are ideal for applications requiring a substantial pressure capability combined with trouble free solids handling such as with umbilical systems.

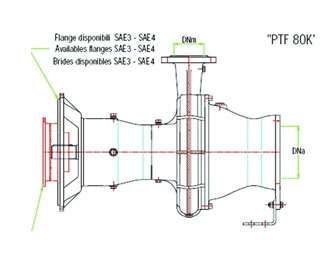

Flange mounted pumps allow simple installation onto engine with an SAE standard flywheel and bell housing for perfect alignment and simple assembly. (Left)

PTO Pedastal mounted pumps are well suited to mounting either by flexible drive coupling or cardan shaft. (Below)

PTO Pedastal mounted pumps are well suited to mounting either by flexible drive coupling or cardan shaft.

PTD engine drive pumps with reduction gearbox allow for peak pump performance at reduced engine speed, giving quieter and less stressed engine running combined with greater fuel efficiency. Pumps can either be close coupled via a flexible drive coupling, or long coupled via carden shaft.

PTO and PTF models feature over sized heavy duty bearings in robust bearing housing for longer bearing life and trouble free operation.

Typical specifications:


ENGINE DRIVE Slurry PumpsAvailable in various sizes to ensure accurate matching of pump to application

The high performance chopping mechanism ensures thorough maceration of slurry prior to entry into the impeller reducing the risk of blockage. Shear pin protection of the chopping mechanism and independent sealing of both gearbox and pump casings ensures long and trouble free working life.
