IRRILANDBlueline Pumps, Mixers & Separators

Sure and reliable on any field!

Irriland is a young dynamic Italian company, based just outside of Parma, Italy. Tim Welsh Enterprises (TWE) is the sole UK importer of their products.

BLUELINE PUMP

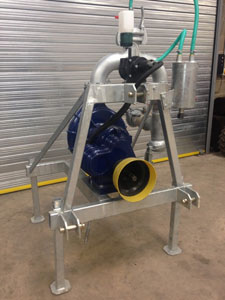

Blueline Pump PTH 80K PumpPTH 80K Pump

The BLUELINE range of high pressure centrifugal pumps features a multi-channel impeller and an unique aggressive double chopping mechanism to give reliable pumping and ease of use.

The range is available in a wide range of models, including; tractor driven, engine driven and direct coupled electric units. This range of pumps are ideal for those requiring a substantial head, such as with umbilical systems and adequate chopping of any material within the pumped liquid.

BLUELINE 80K Standard Features:

  • High efficiency multi channel impeller
  • No auxiliary cooling requirement
  • High performance chopping system
  • Shear pin protection of cutter element
  • Twin sealing of Pump & Gearbox
  • Oil Bath between pump casing and gearboxBlueline 80K Drive Pump C/W Hydraulic Primer
  • Heavy duty high quality castings
  • User serviceable wearing parts

BLUELINE 80K PTO Drive Pump c/w Hydraulic Primer

The high performance chopping mechanism ensures thorough maceration of slurry prior to entry into the impeller reducing the risk of blockage. Shear pin protection of the chopping mechanism and independent sealing of both gearbox and pump casings ensures long and trouble free working life.

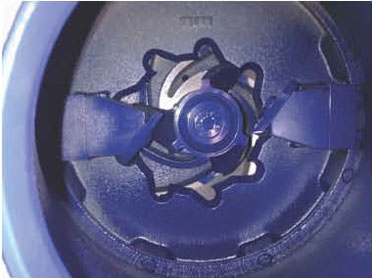

(Picture Right) The Aggresive Double Chopping Mechanism.

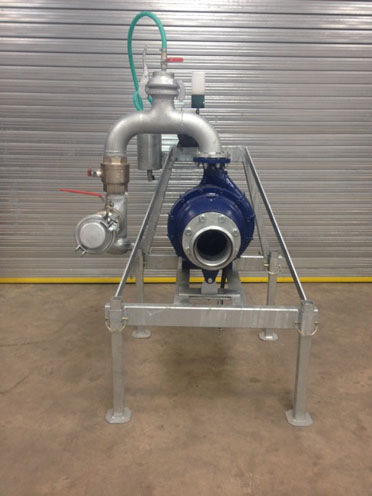

Blueline PTH80K Pump UnitBlueline PTH80K Pump Unit

BLUELINE PTH80K PUMP UNIT Standard Features:

  • BLUELINE PTH80K Pump
  • CATII 3pt Galvanised Link Frame
  • Hydraulic Primer Unit
  • Suction Connection Female Bauer HK 159 (6")
  • Delivery Connection Male Bauer HK 108 (4")
  • Brass Ball Valve on outlet connection – Certified 16Bar Rating
  • Brass Ball Valve on return connection – Certified 16Bar Rating
  • 6m x 6" Suction Hose
  • PTO Shaft with Shearbolt Overload Protection
  • Maximum Flow Rate - 270m3/hr (59,400 gal/hr)
  • Maximum Discharge Pressure - 13.5 Bar
  • Power requirement - 65 to 160 HP
  • Typical Driving power requirement – 100 hp @ 160m3/hr @ 11Bar
